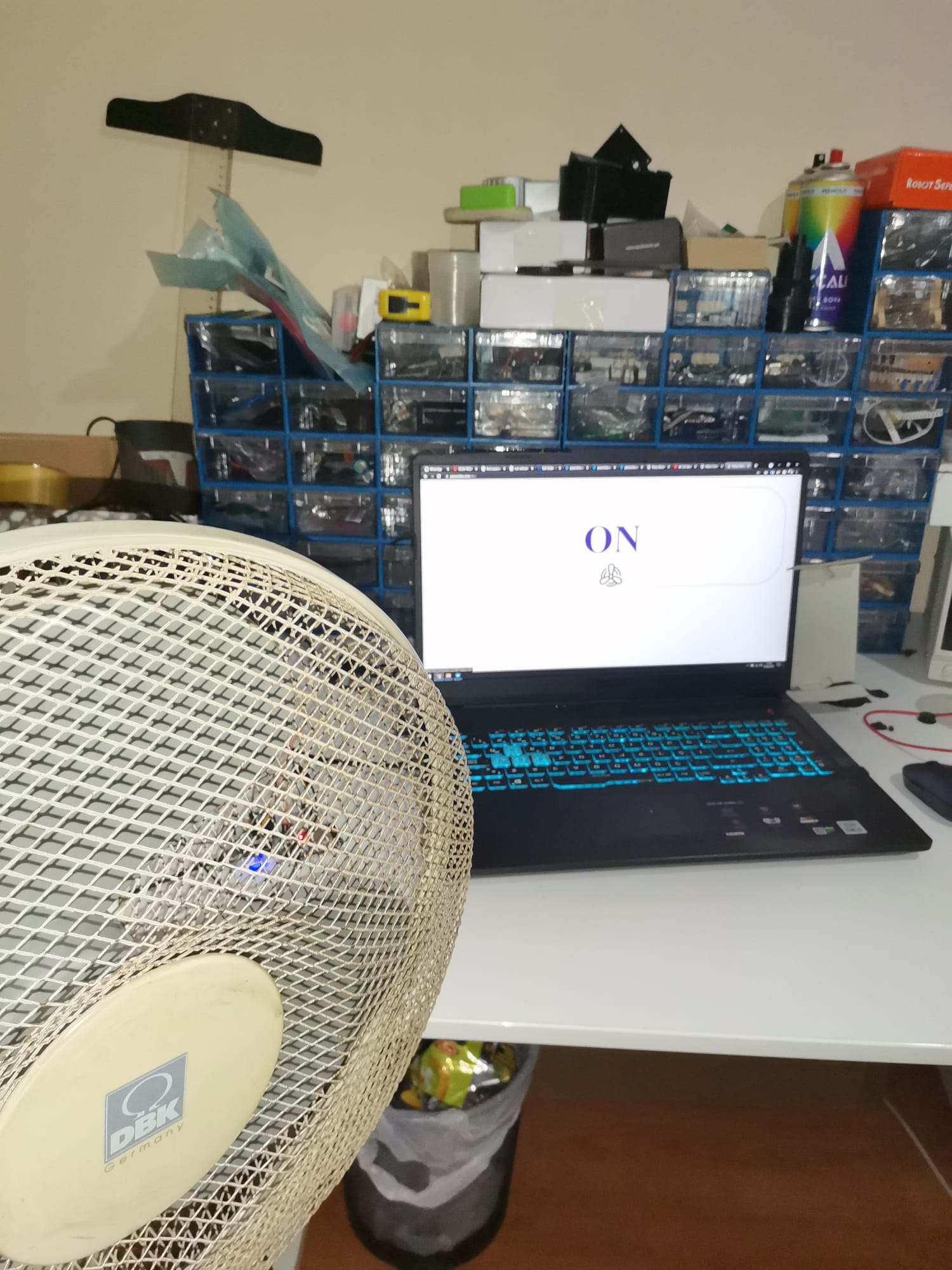

Vantilatörümü halka arz ediyorum :)

Last updated on 16 Ocak 2022

Wi-Fi Üzerinden Kontrol Edilebilen

Röle / Fan / AC-DC Motor Örnek Kod Çalışması

aşağıdaki gibidir:

/*

Wi-Fi CONTROLLED RELAY / FAN / AC-DC MOTOR

||

Wİ-Fİ ÜZERİNDEN KONTROL EDİLEBİLEN RÖLE / FAN / AC-DC MOTOR ÖRNEK KOD ÇALIŞMASI

*/



#include <WiFi.h>
#include <HTTPClient.h>

const char* ssid = "FiberHGW_ZTHE6E_2.4GHz";
const char* password =  "9sufxuJKgf";

int relay_pin = 15;
int blue_led = 2;

void setup() {

  Serial.begin(115200);
  pinMode (relay_pin, OUTPUT);
  pinMode (blue_led, OUTPUT);
  delay(2000);
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to WiFi..");
  }

  Serial.println("Connected to the WiFi network");

}

void loop() {

  if ((WiFi.status() == WL_CONNECTED)) { //Check the current connection status

    HTTPClient http;

    http.begin("https://yasarseher.com/f4n/f4n.txt"); //Specify the URL
    int httpCode = http.GET();                                        //Make the request

    if (httpCode > 0) { //Check for the returning code

      String payload = http.getString();
      Serial.println(httpCode);
      Serial.println(payload);

      if (payload == "ON") {

      digitalWrite(relay_pin, LOW);
      digitalWrite(blue_led, HIGH);

    }
    else
    {
      digitalWrite(relay_pin, HIGH);
      digitalWrite(blue_led, LOW);
    }

    }

    else {
      Serial.println("Error on HTTP request");
    }



    http.end(); //Free the resources
  }

  delay(1000);

}
